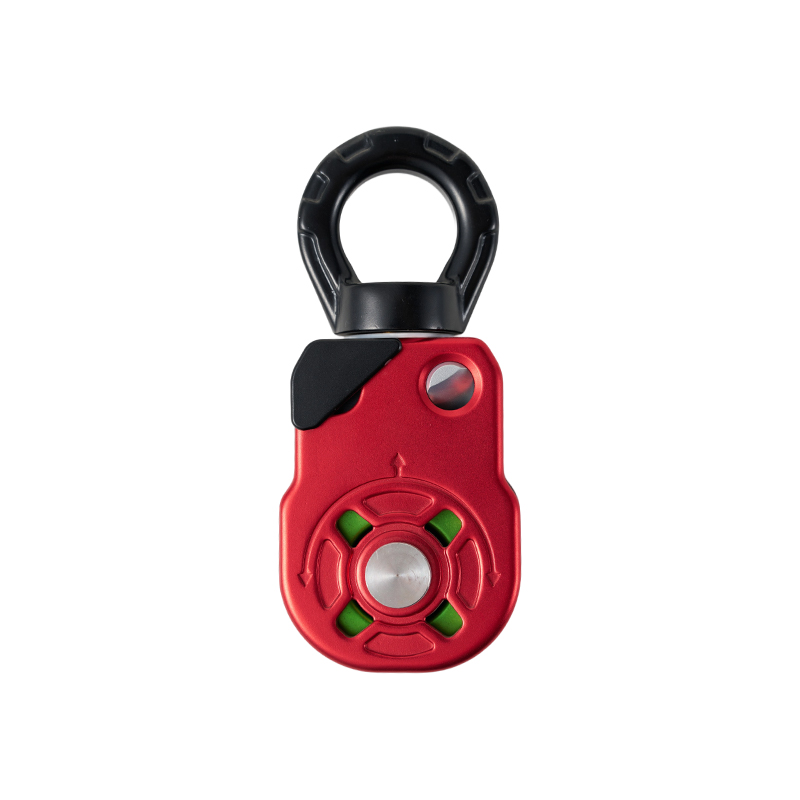

Universal Double Pulleys are a type of general-purpose mechanical component consisting of two pulleys, commonly used for guiding and distributing force in ropes, cables, or belts. Their structural design facilitates multi-directional movement within limited space, increasing the flexibility of system layout. These pulleys are often manufactured from materials such as aluminum alloy, ensuring structural stability while also controlling weight. Universal Double Pulleys are widely used in industrial equipment, engineering installations, and auxiliary transmission applications, and are a common component in basic mechanical systems.

In practical applications, this type of pulley is often used in:

• Auxiliary transmission of industrial equipment
• Lifting and traction systems
• Tension adjustment in automated devices
• Temporary load-bearing structures in construction and maintenance scenarios

Their "universality" is mainly reflected in their diverse installation methods and wide range of adaptability, allowing them to be used with various standard sizes of ropes or belts.

The Impact of Material Selection on Double Pulley Performance

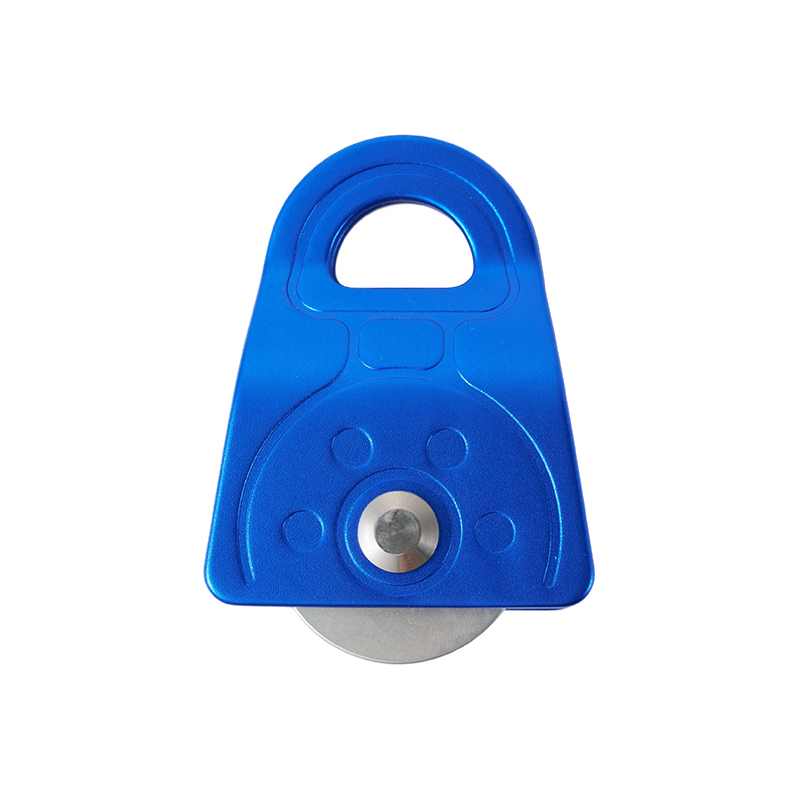

In pulley manufacturing, the material directly affects service life, weight control, and operational stability. One of the more common solutions currently is Aluminum Alloy Pulleys.

The application of aluminum alloy materials in double pulleys is mainly based on the following considerations:

• Relatively low density, which helps reduce the overall structural weight
• Good processing performance, suitable for mass production
• Stable corrosion resistance in conventional environments

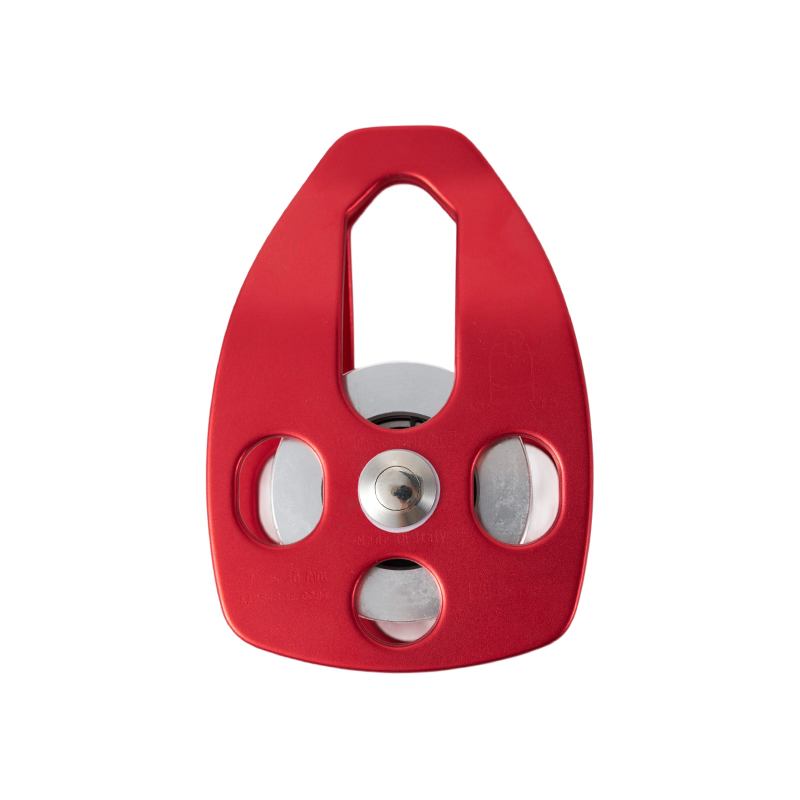

Based on this, some designs have further developed into Lightweight Aluminum Pulley solutions, optimizing the groove structure and wall thickness distribution to reduce unnecessary material usage while meeting load-bearing requirements.

Structural Characteristics of Universal Double Pulleys

From a structural perspective, universal double pulleys typically include the following components:

• Pulley body (double wheel structure)
• Center shaft or bearing assembly
• Bracket or connecting plate
• Fasteners (such as bolts, pins, etc.)

The use of bearings, the type of bearings, and the shape of the pulley groove directly affect the smoothness of operation and the types of ropes that can be used.

Common structural design considerations include:

• Whether the spacing between the two wheels facilitates independent rope movement
• The impact of surface treatment of the pulley groove on friction and wear
• The degree of support provided by the bracket rigidity to overall stability

Analysis of Typical Application Scenarios

In different industries, the use of Universal Double Pulleys varies slightly, but their core function remains consistent. Partial Application Examples:

• Used to guide multiple transmission ropes on industrial assembly lines
• Used to adjust load direction in warehousing equipment
• Used as a temporary force transfer node in building support systems
• Used to demonstrate mechanical principles in mechanical experiments and teaching devices

In these scenarios, the use of Aluminum Alloy Pulleys or Lightweight Aluminum Pulleys helps reduce the operational burden during installation and maintenance.

Comparison of Double Pulleys with Other Pulley Types

The table below compares the basic characteristics of several common pulley types from a structural and application perspective:

As can be seen from the table, Universal Double Pulleys maintain a balance between function and structure, making them suitable for applications that require a certain degree of flexibility but do not need a complex system.

Considerations for Selection and Use

When selecting universal double pulleys, engineers usually consider multiple factors, not just the load-bearing parameters.

Common considerations include:

• Diameter and material of the rope or cable
• Humidity, dust, or corrosive factors in the working environment
• Whether frequent movement or adjustment of position is required
• Weight limitations of the overall system

When the system is sensitive to weight, using a Lightweight Aluminum Pulley design is often easier to integrate with the overall structure.
