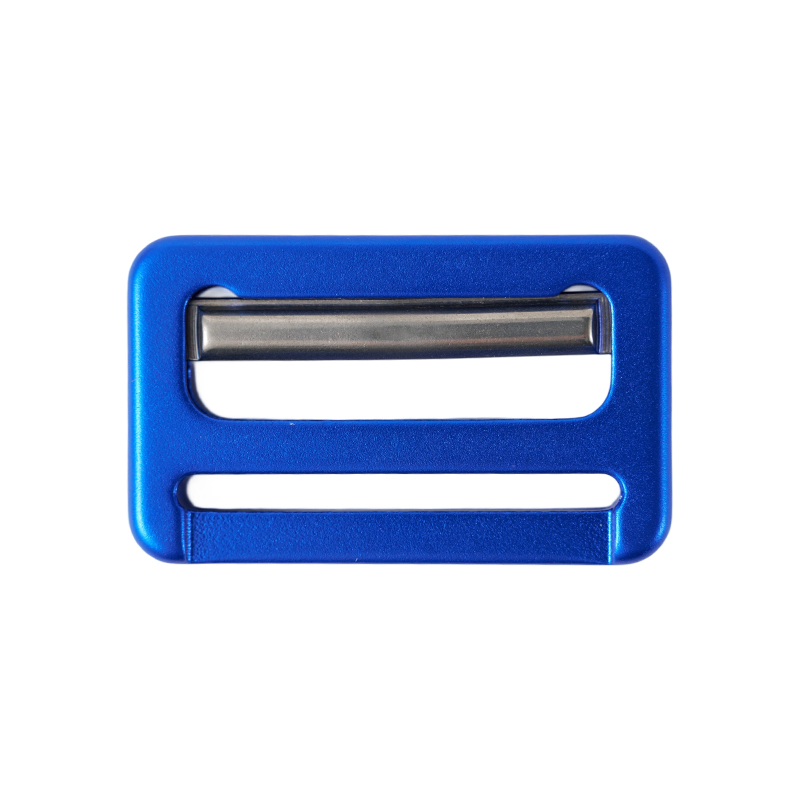

MP-PDK-004 Three-Bar Adjustment Buckle

MP-PDK-004 Three-Bar Adjustment Buckle

Parameter table

Contact Us
  • Description

    The MP-PDK-004 triple-bar adjustable buckle is a robust connector crafted from 7075 aluminum alloy with grade 41 surface treatment. It ensures durability and resistance to harsh conditions.

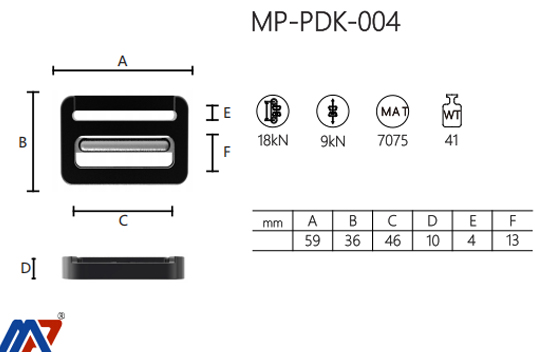

    This buckle offers an ultimate load capacity of 18kN and a working load limit of 9kN, providing reliable strength and safety. It measures 59mm in length (A), 36mm in height (B), with a 46 mm-wide contact surface (C). Its thickness (D) is 10mm, and it has a 4 mm-wide slot (E) with a 13 mm-long slot (F).
    The MP-PDK-004 features a triple-bar design for secure locking and easy adjustment of equipment. Its compact size and robust construction make it ideal for outdoor gear, tactical equipment, and other applications where a balance of strength, durability, and ease of use is required.
